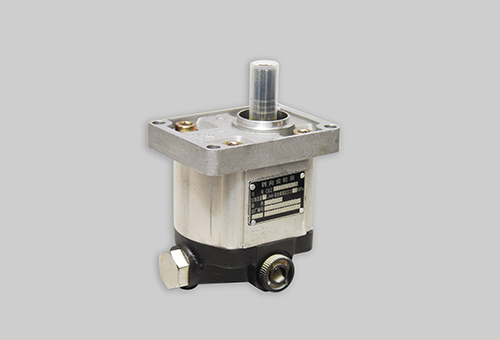

Hydraulic gear pump steering gear pumps

  • Hydraulic gear pump steering gear pumps
  • Hydraulic gear pump steering gear pumps
  • Hydraulic gear pump steering gear pumps

Hydraulic gear pump steering gear pumps

    Type de paiement: T/T
    Terms of Trade: FOB,CFR,CIF
    Quantité de commande minimum: 5 Ton
    Délai de livraison: 30 jours
    Détails d'emballage: Export standard packing
    productivité: 500tons per month
    marque: A&M
    transport: Ocean,Land,Air
    Lieu d'origine: CHINA
    Capacité d'approvisionnement: 500tons per month
    Certificats : ISO SGS
    Hafen: Tianjin

Description du produit

Product Description

CBZ series steering gear pumps are mainly used in agricultural machinery steering systems, as well as in steering systems for passenger cars and trucks. MODEL INSTRUCTIONCBZ series steering gear pumps are mainly used in agricultural machinery steering systems, as well as in steering systems for passenger cars and trucks. MODEL INSTRUCTION



CBZ3

06

A

-060

/125

R

Series

code

Nominal

displacement

mL/r

Connection form code



Control flow

L/min

Relief valve

Pressure

MPa

 Rotation

CBZ3

6



6

12.5

R:rightL:left



TECHNICAL FEATURE 01.high volumetric efficiency, reliable use and long life 02.adopt the structure of flow valve and safety valve to realize steering light and stable, with high safety factory SPECIFICATIONTECHNICAL FEATURE 01.high volumetric efficiency, reliable use and long life 02.adopt the structure of flow valve and safety valve to realize steering light and stable, with high safety factory SPECIFICATION



Product

number



Nominal

displacemen

mL/r

Relief valve

pressure

MPa

Control flow

L/min

Range of

rotation

r/min

Rotation

Host factory code

CBZ115-120/125L

15

12.5

12

600-3500

left

T64644001A

CBZ306A-060/125L

6

12.5

6

600-3000

left

FT354.40C.023

CBZ306B-060/125

6

12.5

6

600-3000

right

FT404.40C.030

CBZ306C-060/125

6

12.5

6

600-3000

right

FT304.40L.023

CBZ306D-060/125

6

12.5

6

600-3000

right

FT354.40J.011

CBZ306I-060/135

6

13.5

6

600-3000

right

12DT03-3407100

CBZ306M1-060/125

6

12.5

6

600-3000

right

TB604.402D.6

CBZ306N1-060/125

6

12.5

6

600-3000

right

FC04400120001

CBZ310A-120/125

10

12.5

12

600-3000

right

FT650.40.030

CBZ310A-120/135

10

13.5

12

600-3000

right

10104054030200

CBZ310B-120/125

10

12.5

12

600-3000

 right

RK554.40C.010

CBZ310B-100/125

10

12.5

10

600-3000

right

RK55402C002000

CBZ310I-100/125

10

12.5

10

600-3000

right

RM700.40.030

CBZ310I-120/125

10

12.5

12

600-3000

right

RM700.40.030

CBZ310J-120/135

10

13.5

12

800-3000

right

10110024000230

CBZ312B-160/125

12

12.5

16

600-3000

right

RC800.40.040A

CBZ314A-120/125L

14

12.5

12

600-3000

left

FT800.40A.028

CBZ314A-100/125L

14

12.5

10

600-3000

left

FT1004.40A.10

CBZ318-160/130

18

13

16

600-3600

right

3407010-52D

CBZ318-160/160

18

16

16

600-3600

right

3407-00145




Detailed Images
Company Introduction
The company integrates research and development and manufacturing of high-end hydraulic product, and is one of the largest and competitive manufacturing enterprises for high-end hydraulic products in China. The company is recognized “high-tech enterprise”by the state. It has an enterprise technology center certified by the state. The annual production capacity reaches 3 million hydraulic components, 40,000 sets hydraulic systems and 20,000 tons of hydraulic castings. The products are widely used in construction machinery, iron and steel, metallurgy, hydraulics, environmental protection, offshore engineering, high-speed rail, wind power, new energy, etc., and have completed a number of national key projects, the products are exported to Europe, America, Asia and Africa. The company continues to strengthen the innovation drive, products and technology continue to expand to high-end manufacturing.

The company consists of four branches: Hydraulic Pump Branch, Hydraulic Valve Branch, Hydraulic System Branch and Casting Branch, there are three subsidiaries of R&D and manufacturing in Taiyuan, Changzhi, Jinan and Shanghai. They produces 3 million units of hydraulic components, 40 thousand sets of hydraulic system equipment, 35 thousand tons of hydraulic castings annually, including high-pressure piston pump, vane pump,gear pump, hydraulic valve, motor, hydraulic cylinder, hydraulic system and castings. They mainly used in engineering machinery, agricultural machinery, transportation (locomotives, rail transit, ships), petroleum machinery, metallurgical steel, coal mines, marine engineering, aerospace, water conservancy and power, machine tool industry, chemical equipment and other fields. The company has provided products for national key projects such as the Three Gorges Project, the South-to-North Water Transfer Project, the localization of metallurgical slab continuous casting and rolling production line and so on.
Product packaging
Our Advantages
The company is a state-recognized high-tech enterprise, with state-recognized hydraulic industry enterprise technology center,and has established a post-doctoral research station with strong independent technology research and product development capabilities. The company has 239 outstanding professionals in development and basic technology, process innovation research of product , including more than 60 senior technical titles. The technology center has established an open operation mode, paying attention to the organic combination of production, education and research, and has established exchanges and cooperation relations with more than 20 universities, colleges and institutes, such as Tinghua University, Beijing Aerospace University, Taiyuan University of Technology, Beijing Institute of Automation, Tianjin Institute of Construction Machinery, etc., and continue to maintain leadership in designing of high-end hydraulic product and controlling of hydraulic-electro-mechanical and other technical fields. The company participated in formulating 21 national and industrial product standards, and obtained 24 invention and practical patents, and won 66 technology progress awards and outstanding new product awards.
Why Choose Us

The company has established a complete quality management system, with the certification of informatization and industrialization "two-oriented integrated management system", and comprehensively implemented refined management to constantly improve product quality and economic benefits.


The company has established a nationwide marketing and service network, dedicated to providing customers with perfect services. We have actively promoted the internationalization strategy and established strategic partners and service agencies in Europe, the Americas, Asia and Africa.

The company upholds the core values of "integrity, innovation, leanness, excellence" and takes the revitalization of China's hydraulic industry as its responsibility to vigorously promote independent innovation and help the development of high-end equipment manufacturing industry.
